Configuring HBA Ports Using the General Configuration Wizard—Step 3

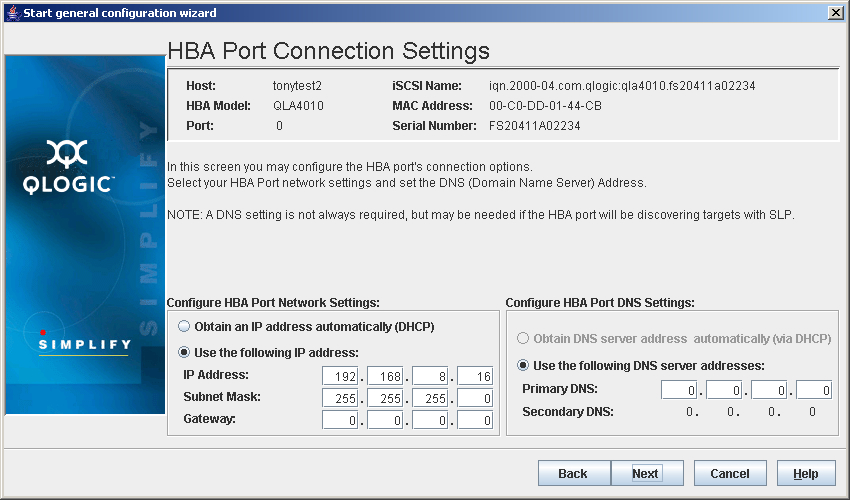

3. If you clicked Next, the HBA Port Connection Settings dialog box displays (see the illustration below).

HBA Port Connection Settings Dialog Box

• Hostname. The name or IP address of the host connected to the HBA
• HBA Model. The QLA4xxx HBA
• Port. HBA port number
• iSCSI Name. iSCSI name
• MAC Address. MAC address of the HBA
• Serial Number. Serial number of the HBA

1. In the Configure HBA Port Network Settings group, choose either Obtain an IP address automatically (DHCP)
   —OR—
   Use the following IP address, and do the following:
   1. Enter the IP Address.
   2. Enter the Subnet Mask.
   3. Enter the Gateway.
2. In the Configure HBA Port DNS Settings group, choose either Obtain DNS server automatically (via DHCP)
   —OR—
   Use the following DNS server addresses, and do the following:
   1. Enter the Primary DNS.
   2. Enter the Secondary DNS.
3. Do one of the following:

• Click Back to return to the previous dialog box.
• Click Next to proceed.
• Click Cancel to exit the General Configuration Wizard without making any changes.
• Click Help to display context-sensitive help.
